Globe Control Valve Repair Guide: 12 Real-World Problems and Solutions

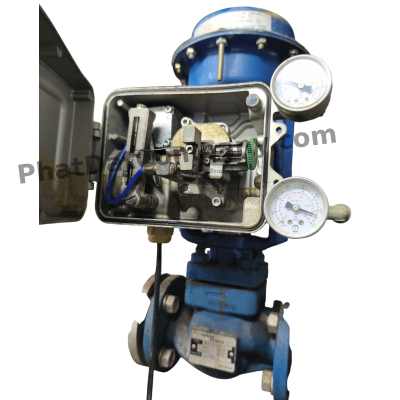

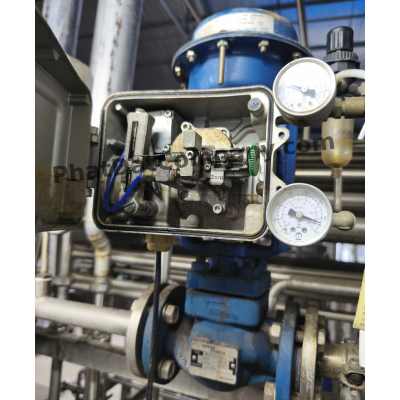

Actual images of the globe control valves repair process, checking the positioner, pneumatic system, and valve travel before putting it back into operation.
Why do linear control valves fail?
Linear control valves operate continuously under harsh conditions:
After long-term operation, failures are inevitable.
The key is diagnosing the real problem correctly.

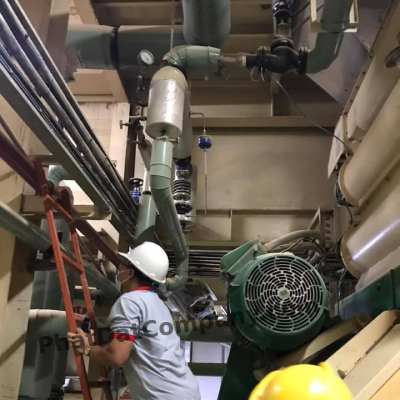

Physically check the linear control valves before repairing
12 real-world problems and how to fix them
1. Valve does not open
Symptoms:
Possible causes:
Solution:
2. Valve does not close
Symptoms:
Possible causes:
Solution:
3. Valve stem stuck
Symptoms:
Possible causes:
Solution:
Practical repair process: actuator removal and body cleaning
When the valve is stuck, unstable, or leaking, maintenance usually starts by removing the actuator.
Step 1: Remove the actuator
Before disassembly:
Remove:
Important:
Always mark the stem position before removal.
Step 2: Inspect gasket, packing, and diaphragm
Check:
Signs of damage:
If damaged:
replace immediately.
Checking gaskets, packing and seals is an important step when repairing control valves
Step 3: Clean valve body and trim
Clean:
Common contamination:
Many valves can recover after proper cleaning.
Step 4: Reassemble and stroke test
After reassembly:
test with air supply.
Check:
If:
4mA = fully closed
20mA = fully open
the valve is working properly.
4. Valve leakage when closed
Symptoms:
Possible causes:
Solution:

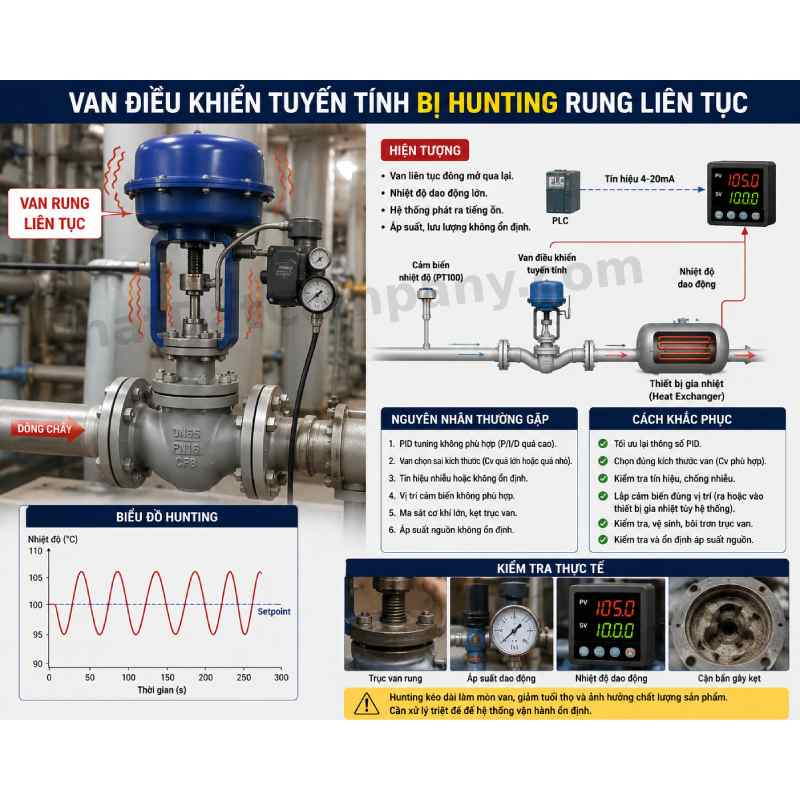

5. Valve hunting (continuous vibration)
This is one of the most common field problems.
Symptoms:
Possible causes:
Solution:
6. Valve does not reach full open
Possible causes:
7. Valve does not fully close
Possible causes:
8. Positioner does not receive 4-20mA signal
Possible causes:
Solution:
measure loop current.
How to measure loop current
To check whether the positioner is receiving signal:
Example:
Controller (+) → Multimeter → Positioner (+)
Readings:
If 0mA:
signal loop is broken.
9. Positioner calibration error
Symptoms:
Solution:
perform re-calibration.
10. Actuator air leakage
Possible causes:
11. Wrong temperature reading from PT100
Possible causes:
This can cause unstable valve movement.
12. Jerky valve movement
Possible causes:
Real field experience
In actual industrial plants:
around 70% of control valve failures are not in the valve body itself.
Most failures come from:
Many customers replace the whole valve unnecessarily.

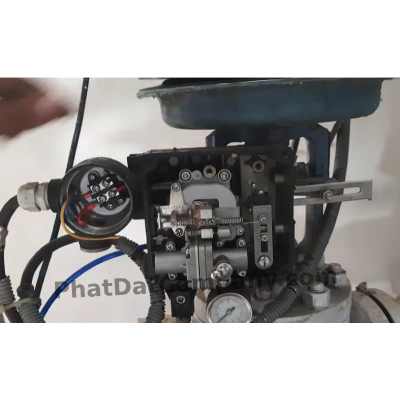

Positioner is the most common error-causing position in practice
When to repair vs when to replace
Condition | Repair | Replace |
|---|---|---|
| Minor leakage | Yes | |
| Positioner failure | Yes | |
| Diaphragm damage | Yes | |
| Bent stem | Yes | |
| Severe seat wear | Yes | |
| Cracked body | Yes |
Phat Dat provides:
Applications:
Control valves are actually tested before delivery
FAQ
Why is my control valve hunting?
Usually due to poor PID tuning or incorrect Cv sizing.
Why does the valve leak even when closed?
Seat wear or contamination is the most common cause.
Should I replace the valve immediately if it stops moving?
No. Always check the positioner first.
Can a faulty positioner be repaired?
Yes, depending on the damage.
Is your linear control valve experiencing:
Send us your valve model or photos.
Phat Dat can help diagnose the real issue before replacement.
